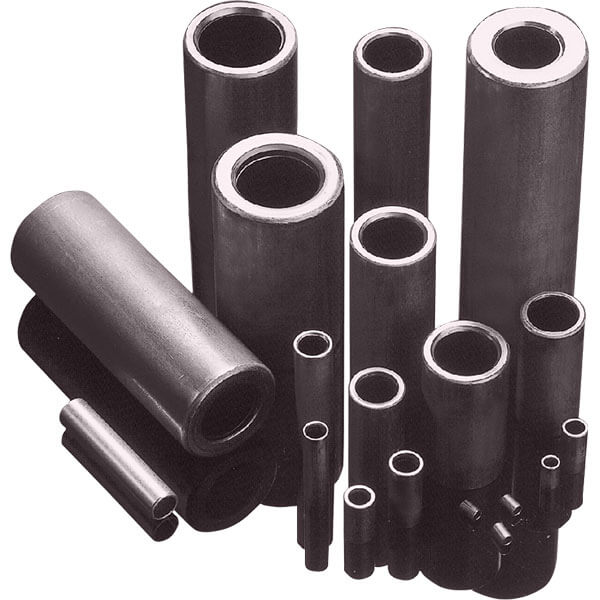

Solid Bushing
Products: medium/low carbon still, alloy still, stainless steel, aluminum alloy, cooper alloy and etc. different materials for the solid bushings of chains.
Production Specification:
| Used for | Production Specification |
|---|---|
| Car Timing Chain | 058 / 068 |
| Bicycle Transmission Chain | 408 / 410 |
| Motorcycle Transmission Chain | 415 / 420 / 40 / (428/088) / 520 / 525 |
| Industrial Transmission Chain | 25 / 35 / 41 / (50/108) / (60/128) / (80/168) / (100/208) / 120 / (140/248) / (160/328) / 200 / 50H / 60H / 80H / 100H / 120H / 140H / 160H |
| Conveyor Chain | C2042 / C2052 / C2062 / C2082 |
| Special Chain | HP40 / HP50 / HP60 / HP80 / SAE1018 / SAE8620 / 35ACR / 10821 / SCM415 / SCM420 |
| Material | SUS302 / SUS304 / SUS410 |
|---|---|
| Concentricity | 0.02 - 00.5mm |
| Outside Diameter | 0.02 - 0.10mm |
| Inside Diameter Tolerance | 0.02 - 0.10mm |
| Altitude Tolerance | 0.10 - 0.20mm (specification: 04B / 05B / 06B / 08B / 408 / 410 / 415 / 40 / 41 / 50 / 60) 0.20 - 0.30mm (specification: 80 / (16B/100) / (120B/120) 0.30 - 0.50mm (specification: 140 / (24B/160) / 32B) |
| Model No. | Outside Diameter D (mm) | Inside Diameter d (mm) | Altitude H (mm) |
|---|---|---|---|
| 160 | 20.15 | 14.63 | 44.9 |
| 140 | 18 | 12.98 | 37 |
| 120 | 15.76 | 11.28 | 35.25 |
| 100 | 13.42 | 9.65 | 28.8 |
| 80 | 11.28 | 8.14 | 24.12 |
| 60 | 8.92 | 6.03 | 17.73 |
| 50 | 7.15 | 5.13 | 13.6 |
| 428 | 6.12 | 4.58 | 11.65 |
| 420 | 5.62 | 4.03 | 9.68 |
The information on the above charts is for reference only. All the production specifications are manufactured based on clients’ drawings.
